雙極性晶體管

二極管

ESD保護、TVS、濾波和信號調節ESD保護

MOSFET

氮化鎵場效應晶體管(GaN FET)

絕緣柵雙極晶體管(IGBTs)

模擬和邏輯IC

汽車應用認證產品(AEC-Q100/Q101)

Power protection

Maximize safe operation and minimize downtime

Today’s electronic systems require a mix of power path protections including inrush current and output overload, reverse current and reverse polarity, short circuit, and overvoltage and over temperature. Nexperia provides a range of power path protection solutions, engineered for exceptional robustness and reliability while maintaining industry-standard compatibility with added efficiency and innovation.

針對物聯網、可穿戴設備、消費電子、汽車和工業應用領域電源需求持續增長的趨勢，Nexperia一直致力于提供電源IC，助力實現創新、高效的解決方案，尤其是幫助客戶降低BOM成本并提高系統性能。為此，我們面向物聯網和消費電子應用推出電池管理和能源采集解決方案，這也是我們在該領域推出的第一個產品系列。

產品

型號 描述 狀態 快速訪問
NID5100 1.2 V to 5.5 V, 1.5 A input polarity protected, low quiescent current ideal diode ACT
NID5100GW 1.2 V to 5.5 V, 1.5 A input polarity protected, low quiescent current ideal diode Production
NID5100GW-Q100 1.2 V to 5.5 V, 1.5 A input polarity protected, low quiescent current ideal diode Production
NID5100-Q100 1.2 V to 5.5 V, 1.5 A input polarity protected, low quiescent current ideal diode ACT
NID5100GW-Q100 1.2 V to 5.5 V, 1.5 A input polarity protected, low quiescent current ideal diode Production
NPS1000 0.5 V to 1.0 V, 1.5 A peak, 11 mΩ, load switch ACT
NPS1000UP 0.5 V to 1.0 V, 1.5 A peak, 11 mΩ, load switch Production
NPS1001 0.5 V to 1.8 V, 1.5 A peak, 12 mΩ, load switch ACT
NPS1001UP 0.5 V to 1.8 V, 1.5 A peak, 12 mΩ, load switch Production
NPS3102 12 V, 2 A to 13.5 A, 17 mΩ eFuse ACT
NPS3102AGB 12 V, 2 A to 13.5 A, 17 mΩ eFuse Production
NPS3102BGB 12 V, 2 A to 13.5 A, 17 mΩ eFuse Production
NPS4001 5.5 V, 55 mOhm load switch with current limitation ACT
NPS4001GV 5.5 V, 55 mOhm load switch with current limitation Production
NPS4053 5.5 V, 55 mOhm load switch with precision adjustable current limit ACT
NPS4053GH 5.5 V, 55 mOhm load switch with precision adjustable current limit Production
NPS4053GH-Q100 5.5 V, 55 mOhm load switch with precision adjustable current limit Production
NPS4053GV 5.5 V, 55 mOhm load switch with precision adjustable current limit Production
NPS4053GV-Q100 5.5 V, 55 mOhm load switch with precision adjustable current limit Production
NPS4053-Q100 5.5 V, 55 mOhm load switch with precision adjustable current limit ACT
NPS4053GH-Q100 5.5 V, 55 mOhm load switch with precision adjustable current limit Production
NPS4053GV-Q100 5.5 V, 55 mOhm load switch with precision adjustable current limit Production
NPS4069 5.5 V, 55 mOhm load switch with current limitation ACT
NPS4069GV 5.5 V, 55 mOhm load switch with current limitation Production
NID1100GV 1.5 V to 5.5 V, 1 A, ideal diode with forward voltage blocking Production
NPS3005GP 0.5 V to 5.5 V, 6 A, 15 mOhm, single channel load switch with soft start Production
NPS3005GP-Q100 0.5 V to 5.5 V, 6 A, 15 mOhm, single channel load switch with soft start Production
Visit our documentation center for all documentation

Leaflet (3)
文件名稱 標題 類型 日期
nexperia_leaflet_efuse.pdf 12 V, 2 A-13.5 A (17 mΩ) eFuse for Enterprise, Communications and Storage Leaflet 2025-01-21
nexperia_leaflet_ideal-diode.pdf NID5100 Ideal Diode Leaflet 2024-08-09
nexperia_leaflet_electronics_power_management_load_switch.pdf NPS4053 load switch leaflet Leaflet 2024-03-29

Outline 3d (1)
文件名稱 標題 類型 日期

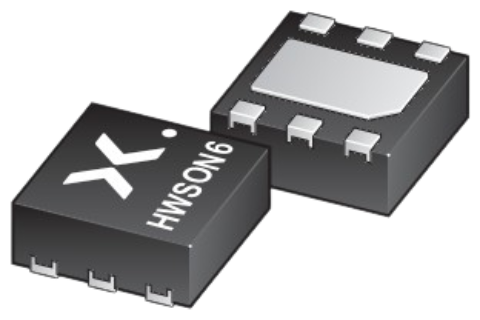

sot8044-1_3d.png HWSON6; SOT8044-1; Plastic thermal enhanced very very thin Small Outline packages, no leads; 6 terminals; 0.65 mm pitch; 2.0 mm x 2.0 mm x 0.75 mm body Outline 3d 2025-04-10

如果您有支持方面的疑問，請告知我們。如需獲得設計支持，請告知我們并填寫技術支持表格，我們會盡快回復您。

請訪問我們的社區論壇或聯系我們。


交叉參考
